720P AHD Camera with IP69K Protection and CMOS Image Sensor for Automotive Driver Assistance Systems

Brand Name:	Customized
MOQ:	500
Price:	Negotiatable
Payment Terms:	T/T,L/C
Supply Ability:	100000PCS/Month

Detail Information

Product Description

Detail Information

Certification:

E-Mark, CE, FCC, RoHS

Proposal 1:

IMX225 + NVP2431 With 1280*720 Pixel

Proposal 2:

GC2053 + TP3820/3811 With 1920*1080 Pixel

Proposal 3:

SC2331 + TP3810 With 1920*1080 Pixel

Applications:

Rear View Camera Display System(RVC), 360° Around View Monitor System(AVM), Moving Object Detection(MOD), ADAS Camera Etc.

Application:

Automotive

Packaging Details:

Regular Export Packaging, Customized

Supply Ability:

100000PCS/Month

Highlight:

720P AHD Camera

CMOS AHD Camera

CMOS camera ahd

Product Description

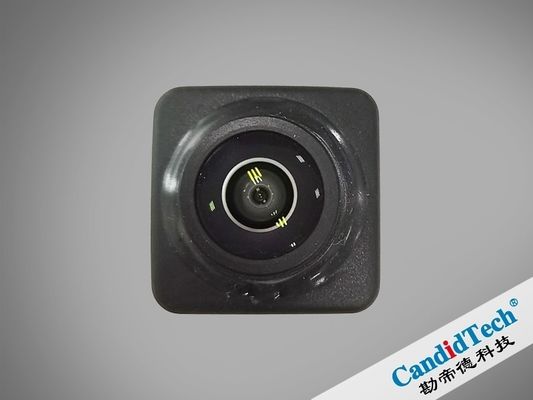

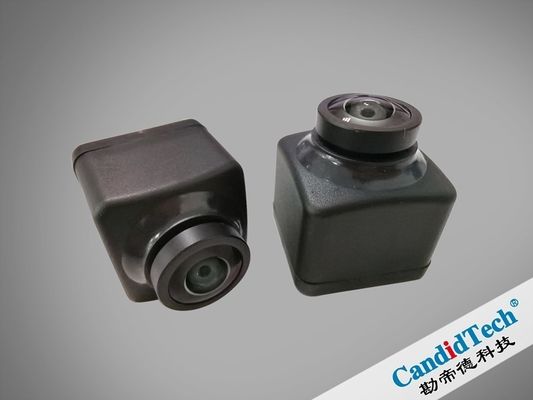

720P AHD Camera with IP69K Protection and CMOS Image Sensor

Key Features

1.3 million pixel high-resolution camera
AHD signal transmission technology
IP69K level environmental protection
AA focus technology for superior image quality
Compatible with ADAS applications: RVC, MOD, PD, LDWS, DVR, DMS

AHD Camera Specifications

Image Sensor	CMOS
Resolution	1280(H) × 720(V)
Field of View (FOV)	187±5°
FNO	2.5
Frame Rate	30 fps
Minimum Illumination	0.1 lux
Dynamic Range	≥80 dB
Automatic White Balance (AWB)	Yes
Automatic Gain Control (AGC)	Yes
Automatic Exposure Control (AEC)	Yes
Signal Output	AHD
Image Output	Mirrored/Non-mirrored
Operating Temperature	-40℃ to 85℃
Storage Temperature	-40℃ to 95℃
Operating Humidity	≤95% RH
Working Voltage	5 VDC
Working Current	150 mA @ 5 VDC
Lens Ingress Protection	IP69K

Camera Dimensions

Image Quality Features

High image resolution (1280×720P)
Superior image reducibility
Clear night vision capability

Applications

Rear View Camera Display System (RVC)
The automotive rearview camera system enhances visibility and prevents accidents while reversing. Mounted on the vehicle's rear, it provides live video feed to the driver through a dashboard display. Advanced features include warning alerts for nearby objects and integration with parking sensors. Candid's AHD Camera optical lens has passed IP69K testing and meets automotive regulations.

Installation Specifications

Position	60mm to the left of rear center
Installation Height	1045mm to the level ground
Installation Angle	34°
Vertical Blind Spot Distance	264mm
Angle of Elevation	14°

Remarks:
1. Above installation specifications are for reference only; actual installation will be based on practical vehicle data.
2. Camera installation must comply with local laws and regulations.

Complete Product Line: Our current product lines cover vehicle cameras for various applications including rear view, front view, side view, around view, Dash Cameras, Around View Monitoring Systems, Microwave Radar Blind Spot Detection Systems, ADAS products, CMS (Camera Monitor System), OMS (Occupant Monitor System), and DMS (Driver Monitor System).

Contact: Please email sales2@candidelectronics.com for more details.
