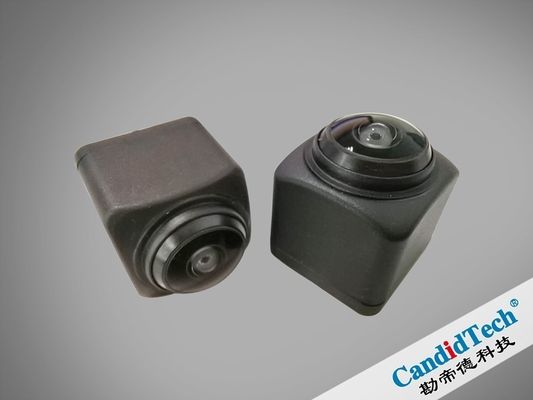

CMOS Image Sensor CVBS Camera With Dynamic Assisted Line And IP6K 9K Certification

Brand Name:	Customized
MOQ:	300
Price:	Negotiatable
Payment Terms:	T/T, L/C
Supply Ability:	100000/Month

Detail Information

Product Description

Detail Information

Certification:

E-Mark, CE, FCC, RoHS

Pixel:

720P*480P

Applies To:

Rear View Camera Display System(RVC), 360° Around View Monitor System(AVM)

Supported:

NTSC/PAL

Application:

Automotive

Packaging Details:

Regular Export Packaging, Customized

Supply Ability:

100000/Month

Highlight:

9K cvbs camera

IP6K cvbs camera

720P x 480P ahd cvbs camera

Product Description

FEATURES:

CMOS image sensor;
Dynamic assisted line;
IP6K9K;
NTSC Supported.
Apply for car rearview camer, 360 SVM camera, car dash camera, etc.

SPECIFICATIONS:

Image Sensor	CMOS
Effective Pixel	728(H) x 560(V), 400K
Horizontal View Angle	120± 3º
Vertical View Angle	98± 3º
Minimum Illumination	0.1 lux
Maximum Illumination	100,000 lux
Dynamic Range	74dB
Automatic Gain Control (AGC)	Yes
Automatic Exposure Control (AEC)	Yes
Output Pixel	720(H) x 480(V)
Signal Output	CVBS
Image Output	Mirrored/Non-mirrored
Response Time	<1s (From fuzzy image to clear image)
Operating Temperature	-40℃～85℃
Storage Temperature	-40℃～95℃
Operating Humidity	≤95%RH
Power Consumption	<150mA
Lens Ingress Protection	IP69K
Software Customized	Support
Hardware Customized	Support
Appearance Customized	Support
Bracket Customized	Support

SIZE OF CAMERA:

CVBS car camera customized

IMAGE DISPLAY:

720P*480P video output;
Mirrored / non-mirrored image output;
More clear night vision than general products.

clear night vision

APPLICATIONS:

Rear View Camera Display System(RVC)

RVC is one of the driver assistance system. It through the camera which installed on the rear of vehicle, to convert the rear view into electrical signals, and transmit to real-time video on the car display screen, to assist driver for reversing or parking.

Adding assisted line into the real-time video, can help driver to estimated the distance between bumper and rear obstacles, and take action in time to avoid accident.

CVBS rear view camera

Rear View Camera Display System

rear view camera system customized

Position 60mm	to the left of rear center
Installation Height	1045mm to the level ground
Installation	Angle 34°
Blind Spot Angle	12°
Vertical Blind Spot Distance	264mm
Angle of Elevation	14°

Remarks:

1. Above installation status are for reference only, the actual installation will be based on practical car 3D data.

2. The installation for camera must comply with local law and regulations.

Our current product lines cover vehicle cameras for different applications: including rear view, front view, side view and around view, Dash Cameras, Around View Monitoring Systems, Microwave Radar Blind Spot Detection Systems, ADAS products,CMS(Camera Monitor System) ,OMS(Occupant monitor system),DMS(Driver Monitor System), and the like. Please email: sales2@candidelectronics.com for more details.
