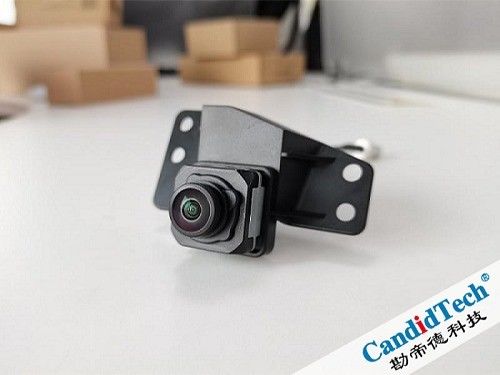

FPD LINKIII Camera Module Vehicle LVDS Camera Fisheye Wide Angle View For Automotive Imaging Solution

Brand Name:	Customized
MOQ:	300
Price:	Negotiatable
Payment Terms:	T/T,L/C
Supply Ability:	100000/Month

Detail Information

Product Description

Detail Information

Certification:

E-Mark, CE, FCC, RoHS

Quality:

OE Automotive Grade

Working Tempt. Range:

-40℃~85℃ -40℉~185℉

Waterproof & Dustproof Rating:

IP69K (optional)

Service:

OEM/ODM

Application:

Automotive

Packaging Details:

Regular Export Packaging, Customized

Supply Ability:

100000/Month

Highlight:

Vehicle Rear View Mirror Camera

Automotive Imaging Rear View Mirror Camera

LVDS rear view mirror dash cam

Product Description

OVERVIEW

CandidTech's FPD - LINKIII camera module adopts SmartSens' SC120AT, an automotive - grade CMOS image sensor solution. This sensor integrates ISP (Image Signal Processor) functionality, enabling on - chip optimization of RAW image data and outputting high - quality YUV 422 - format video images. It alleviates the computational load on the vehicle's SoC (System - on - Chip), accelerates processing speed, and enhances automotive image - processing efficiency.

The camera module also integrates the TI933 serializer, ensuring seamless connection with the corresponding in - car display screen to present high - definition images. Besides, the SC120AT is especially suitable for Advanced Driver Assistance Systems (ADAS) and artificial intelligence (AI) applications. It can adapt to the complex light changes during day - and - night driving, providing high - quality image output. Its built - in ISP function reduces latency and improves extended compatibility and configurability, making it one of the preferred front - end image - processing solutions for in - car intelligent vision systems.

MORE SPECIFICATIONS

ISP	SC120AT(bulit-in ISP)
Image Sensor	SC120AT(bulit-in ISP)
Lens	2G 4P+1,1 IR filter
Aperture	F2.0
FOV	H:194±3° V:140±3° (Support Customized)
Resolution	1280*960
FPS	30fp/s
Serializer	TI933
Sync	Support synchronization
Transmission	FPD-LINKIII
Video format	YUV422
Start time	<1S
Working voltage	DC 6-16V
Working current	<150mA(DC 8V)
Imaging effect	Non-Mirror/Mirror
interface	FAKRA
Static current	POC
Storage temp.	—40℃～+80℃
Working temp.	—40℃～+80℃
Size	23.523.533mm

Above partial parameters support customized according to your specific requests.Please contact email: sales2@candidelectronics.com for more details
