Concealed Type Automotive Grade Dash Camera Front And Rear Dual Recording 1080P OEM

Concealed Type Automotive Grade Dash Camera Front And Rear Dual Recording 1080P OEM

Brand Name:	Customized
MOQ:	300
Price:	Negotiatable
Payment Terms:	T/T,L/C
Supply Ability:	100000PCS/Month

Detail Information

Product Description

Detail Information

Certification:

E-Mark, CE, FCC, RoHS

Features:

Super Low Light Night Vision

Recording:

1080P Front And Rear Dual Recording

Memory:

128G TF Card

Working Tempt. Range:

-40℃~85℃ -40℉~185℉

Application:

Automotive

Packaging Details:

Regular Export Packaging, Customized

Supply Ability:

100000PCS/Month

Highlight:

Automative Concealed Dash Cam

1080P Concealed Dash Cam

OEM dash camera

Product Description

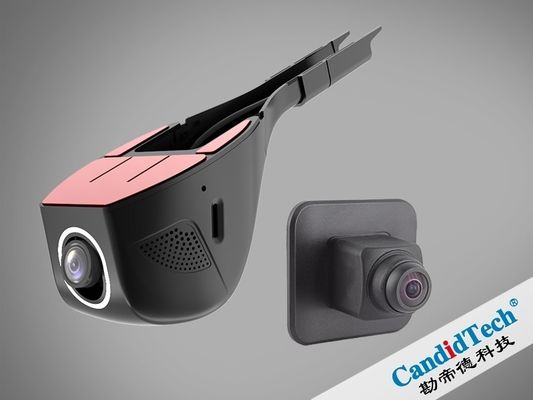

OEM Concealed Type Automative Grade Dash Camera Front And Rear Dual Recording 1080P

OVERVIEW

CandidTech's automotive grade front and rear view dual recording dash cam, based on the Ambarella A12A25 solution, features the industrial grade GC2093 image sensor. It outputs 1080P high resolution videos, ensuring crystal clear footage of both the front and rear views.

With Wi - Fi connectivity, you can effortlessly access recordings via a dedicated mobile APP. HDR/WDR technology optimizes image quality across varying lighting conditions, while the 0.1 Lux super low light night vision ensures excellent visibility even in near - darkness.

A three - axis gravity sensor is in place to detect sudden impacts, automatically locking and saving emergency videos. The dash cam supports loop recording, maximizing storage usage. Functioning seamlessly within a temperature range of - 40°C to 85°C, it's built to endure the harshest automotive environments, making it a reliable choice for comprehensive driving recording.

SPECIFICATIONS

Front Camera
Horizontal FOV	120±3°
Vertical FOV	62±3°
F/No	1.8
Waterproof Level	IP5K5K
Structure	6G+IR Filter
Resolutions	1920(H) x 1080(V) (16:9 mode)
Sensitivity	4.0 V/lux-sec
Night Vision	Low light level night vision
Frame Rate	30 fps (1080P)
SNR	48dB min
Dynamic Range	96dB min
Minimum Illumination	50IRE@0.1 Lux
Maximum Illumination	100,000 Lux
Memory
Capacity	16~128GB
Video Files	MP4
Data Protection File	Encryption function
Data Processing	When memory card is full, the new videos will cover the old ones.
Image Compressed Format	H.264
Compression Ratio	200:1
Operation Mode
Collision Lock Recording	Automatic lock protection when collision
Privacy Protection	Sound turn-off optional
Circular Recording Mode	Recording time 1/3/5 minutes setting optional
Auto Power On	Yes
Video Output
Video Format	NTSC
Output Interface	CVBS signal connect with Wi-Fi then output to mobile phone APP
Frame Correction	Build-in
Power
Power Supply	Battery + ACC
Operation Voltage	9~16VDC
Operation Current	270mA
Quiescent Current	< 0.3mA
Power Consumption	3W
General
Operation Temperature	-40℃～85℃
Storage Temperature	-40℃～95℃
DVR Weight	138g(for reference only)
Rear-view Recording Kit
Horizontal FOV	120±3°
Vertical FOV	62±3°
Image Compressed Format	H.264 (MP4)
Photo Format	JPG
Video Pixel	2 million pixels
Video Output Signal	LVDS
Operation Voltage	5VDC
Minimum Illumination	0.1 lux
Frame Rate	30 fps
Waterproof Level	IP6K9K
Resolutions	1920(H) x 1080(V)

SPECIAL FUNCTIONS

1) Automative Grade 1080P Front and Rear Dual Recording.

2)Outstanding super night vision feature: Powered by advanced optics and intelligent algorithms, it excels in low - light scenarios. Even in near pitch black conditions.This ensures comprehensive surveillance day and night, enhancing driving safety and providing reliable evidence during nocturnal drives.

Concealed Type Automotive Grade Dash Camera Front And Rear Dual Recording 1080P OEM 0

3) Wi-Fi Connect: Video Playback

User can watch video playback on smart phone.

Continuous video recording(1080P);
Connect with smart phone APP through Wi-Fi;
Previous video playback;
User can copy the videos to the smart phone;
User can upload the videos to the Internet by smart phone.

Concealed Type Automotive Grade Dash Camera Front And Rear Dual Recording 1080P OEM 1

INSTALLATION

Concealed Type Automotive Grade Dash Camera Front And Rear Dual Recording 1080P OEM 2

Our current product lines cover vehicle cameras for different applications: including rear view, front view, side view and around view, Dash Cameras, Around View Monitoring Systems, ADAS products,CMS(Camera Monitor System) ,OMS(Occupant monitor system),DMS(Driver Monitor System), and the like. Please email: sales2@candidelectronics.com for more details.
