ADAS 360 Surround View Camera System with 1920p Resolution IP69 Waterproof and Moving Object Detection

ADAS 360 Surround View Camera System with 1920p Resolution IP69 Waterproof and Moving Object Detection

Brand Name:	Customized
MOQ:	300
Price:	Negotiatable
Payment Terms:	T/T,L/C
Supply Ability:	100000PCS/Month

Detail Information

Product Description

Detail Information

Certification:

E-Mark, CE, FCC, RoHS

Resolution:

1920p*1080p/1080*720p/720*480 Pixel

Working Tempt. Range:

-40℃~85℃ -40℉~185℉

Signal Customization:

AHD/CVBS/LVDS/Ethernet

Signal Output:

CVBS/AHD/LVDS

Signal Output Format:

NTSC/PAL

DVR Memory:

64G/128G TF Card

ADAS Applications:

Parking Assistance,All-terrain Perspective, MOD, PD, LDWS, DVR, Radar Blind Spot Detection Etc.

Waterproof Rating:

IP69

Application:

Automotive

Packaging Details:

Regular Export Packaging, Customized

Supply Ability:

100000PCS/Month

Highlight:

ADAS 360 surround view camera system car

CVBS Parking Assistance 360 surround view camera system car

LVDS 360 surround view camera system

Product Description

ADAS 360 Surround View Camera System

Advanced All-Terrain Perspective with LDWS & Blind Spot Detection

CandidTech's ADAS AVM solution provides comprehensive 360-degree vehicle monitoring with extended ADAS features for enhanced safety and driving assistance.

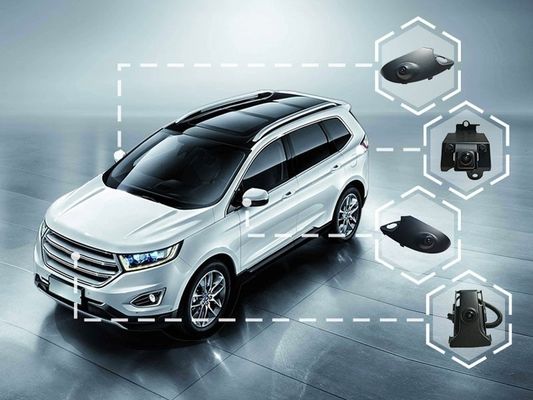

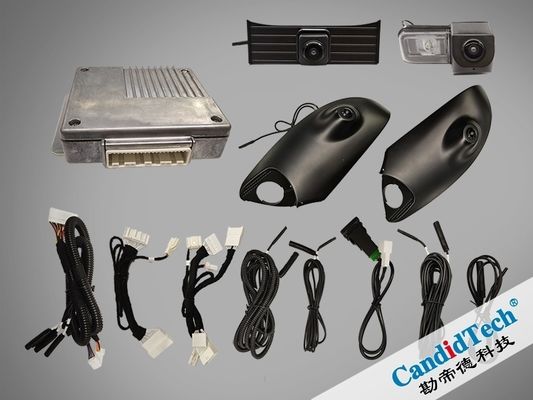

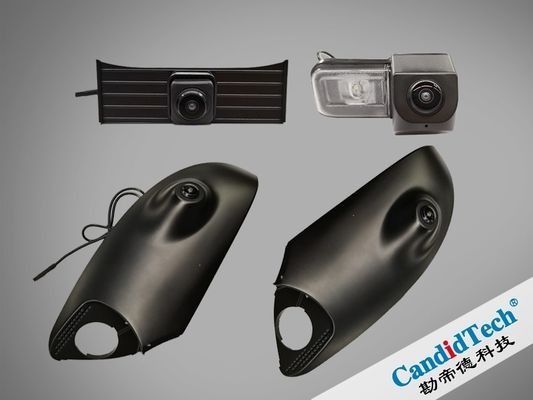

The system consists of one Electronic Control Unit (ECU) and four cameras that process and display real-time images on your vehicle's screen.

System Specifications

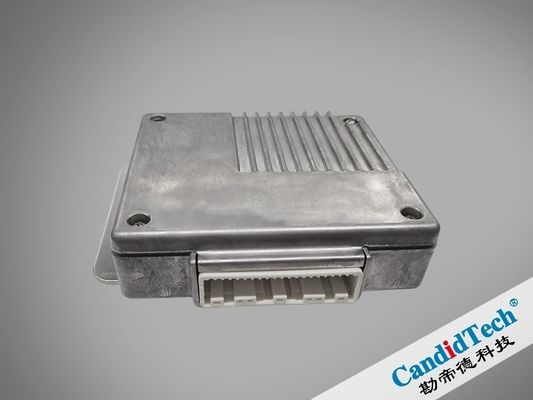

ECU Specifications

Operation Voltage	9~16VDC
System Startup Time	≤2S
Power Consumption	<2A @13.5VDC
Operation Temperature	-40℃ ~ 85℃
Storage Temperature	-40℃ ~ 95℃
Input Video Format	CVBS/AHD/LVDS
Output Video Format	CVBS / HDMI / VGA/LVDS
Video Channel	4 channels
Output Pixels	1280 * 720 p
Output Delay	3 Frame, Maximum < 100ms

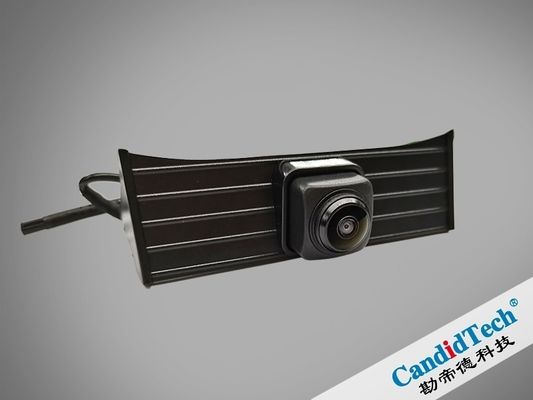

Camera Specifications

Image Sensor	¼ CMOS (NTSC) / ASX340 (1/4" 4:3 IT CMOS)
Operation Voltage	4.5V~5.5VDC; 6~16VDC
Operation Current	Normal 60mA@5.0VDC
Active Pixels	1080(H) x 720(V)
Operation Temperature	-40℃~95℃
Storage Temperature	-40℃~85℃
Resolutions	Horizontal≥ 300 lines; Vertical ≥ 300 lines
Min Luminance	≥ 50IRE@0.5 Lux
S/N Ratio	≥ 41dB MAX
Dynamic Range	≥ 120dB
Waterproof Level	ISO20653 IP6K9K
Horizontal FOV	192º+3°
Vertical FOV	142º+3°
Automatic White Balance (AWB)	Yes
Automatic Gain Control (AGC)	Yes
Automatic Exposure Control (AEC)	Yes
Frame Rate	30 fps
Shutter Type	Electronic Rolling Shutter(ERS)
Minimum Illumination	1.0lux

Core System Functions

2D Around View Display

Seamlessly stitches images from four cameras into a comprehensive 360-degree view around the vehicle.

Multi-Directional Image Display

Displays images from different directions for comprehensive situational awareness.

3D Around View Display

Automatic View Switching

Automatically shifts views based on turn signals, gear shifts, or AVM button activation.

Parking Assistance Lines

Provides static or dynamic parking assistance lines when reversing, with customizable options.

Advanced ADAS Functions

Full-terrain Perspective Under the Car

Displays wide-angle tripartite view with nearly 180° horizon for checking approaching vehicles when exiting parking spots.

Ultrasonic Radar Distance Warning

Integrates with vehicle radar systems (available as add-on) for distance warning functionality.

DVR Function

Records video from all four cameras and outputs 4-in-1 image for evidence purposes. Supports TF cards up to 32GB.

Moving Object Detection (MOD)

Detects moving objects around the vehicle during parking or startup and alerts the driver.

Lane Departure Warning System (LDWS)

Identifies lane markings and alerts drivers when deviating from lanes without signaling at speeds above 50km/h.

CandidTech Advantages

Advanced Sensor Fusion Technology: 10+ years of experience as Tier1/Tier2 supplier with support for multiple high-resolution cameras and sensors
High-Performance Image Processing: In-house developed algorithms for real-time image stitching and distortion correction
Customized Software Solutions: Tailored integration with vehicle entertainment and driver-assistance systems
Reliable Connectivity: Advanced GMSL protocols for real-time data transmission without signal loss
Excellent Environmental Adaptability: IP67+ rated components withstand extreme temperatures and harsh conditions

Contact Us: For more information about our 360 surround view system and other automotive camera products including rear view, front view, side view, dash cameras, CMS, OMS, and DMS systems, please email: sales2@candidelectronics.com
