OE Part DMS Camera For Real Time Driver Monitoring In Vehicle Cabin

Name

OE Part DMS Camera For Real Time Driver Monitoring In Vehicle Cabin

Brand Name: Customized
MOQ: 300
Price: Negotiatable
Payment Terms: T/T,L/C
Supply Ability: 100000PCS/Month
Detail Information
Product Description
Detail Information
Certification:
E-Mark, CE, FCC, RoHS
Sensor:
OmniVision
Certification:
IATR16949, ISO 26262, RoHS, E-Mark, ECE R79, FCC, CE
Services:
OE Service, Product Appearance Customized
Quality:
Automotive-grade
Application:
Automotive
Packaging Details:
Regular Export Packaging, Customized
Supply Ability:
100000PCS/Month
Highlight:

Automotive DMS Camera

,

Vehicle Cabin DMS Camera

,

IATR16949 camera dms

Product Description

INTRODUCTION



The DMS camera is a monochrome imaging camera specifically designed to monitor the driver's activities and status within the vehicle cabin. Equipped with advanced Omnivision sensors and image processing algorithms, it can capture clear and detailed images even in challenging lighting conditions, such as low light or direct sunlight. This ensures accurate and reliable monitoring of the driver at all time.





More Specification about CandidTech's DMS Camera



Item

 CandidTech Specification

Resolution

 1280*800

F.O.V

 H: 66.2°±2, V: 39.5°±2 (Support customized)

Signal Output

LVDS

Colored(RGB/IR)

 IR
Shutter Type Global shutter
HDR      68db
SNR 38db
Frame Rate 30fps
Serializer GMSL MAX
Connector Amphenol Fakra(Z Code )
Response time less than 400ms
Working Temp. Range -40°—85°
Reset Control Auto reset
Focusing Distance 0.35-1.1 M
Depth of Field 0.4-1.2M
LED drive current LED infrared (250mA)@12V
Camera Size 37.3mm*21.2mm*22.5mm
Other parameter customization Support







REMARKS



The product appearence including size, strutrue, installation position, color etc. We support customized based on your vehicle interior.

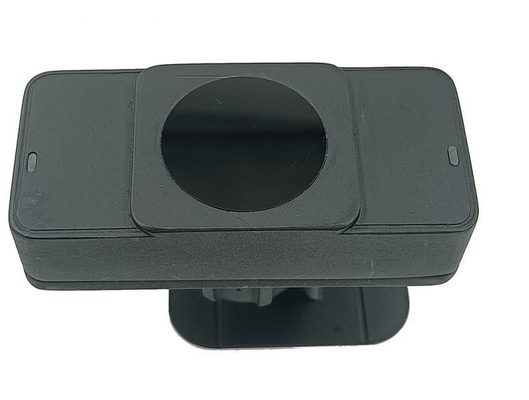

OE Part DMS Camera For Real Time Driver Monitoring In Vehicle Cabin 0





Our current product lines cover vehicle cameras for different applications: including rear view, front view, side view and around view, Dash Cameras, Around View Monitoring Systems, ADAS products,CMS(Camera Monitor System) ,OMS(Occupant monitor system),DMS(Driver Monitor System), and the like. Please email: sales2@candidelectronics.com for more details.

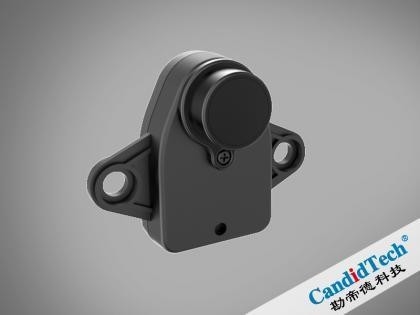

OE Part DMS Camera For Real Time Driver Monitoring In Vehicle Cabin 1
