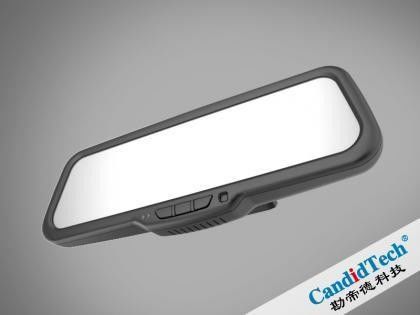

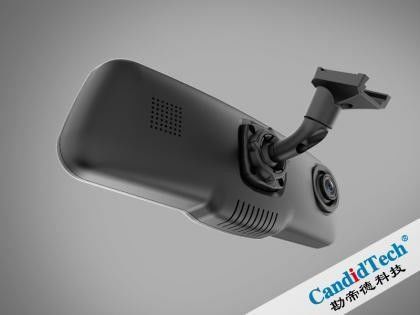

Car Rear View Mirror Camera with 120dB HDR and 60 fps Dual View Camera System Featuring Anti-glare Functionality

Brand Name:	Customized
MOQ:	300
Price:	Negotiatable
Payment Terms:	T/T,L/C
Supply Ability:	100000PCS/Month

Detail Information

Product Description

Detail Information

Certification:

E-Mark, CE, FCC, RoHS

Feature 1:

Rearview 120dB HDR

Feature 2:

60 Fps

Feature 3:

Anti-glare Functionality

Feature 4:

Enhanced Visibility

Feature 5:

Video Streaming

Feature 6:

Recording Capabilitie

Feature 7:

Night Vision

Feature 8:

Reverse Parking Assistance

Application:

Automotive

Packaging Details:

Regular Export Packaging, Customized

Supply Ability:

100000PCS/Month

Highlight:

Car Rear View Mirror Camera

Dual View Rear View Mirror Camera

Night vision rearview camera

Product Description

Car Rear View Mirror Camera Front And Rearview Camera HD Dual View

System Introduction

The high-definition streaming rearview mirror utilizes advanced real-time display technology. Through a fully high-definition, distortion-free, night vision wide-angle camera installed at the rear of the vehicle, the rear image is displayed on the display screen. The wide-angle camera has a viewing angle more than three times that of traditional rearview mirrors, with a longer viewing range. Additional HD driving record function helps prevent collisions and clearly records every moment of driving. This system helps curb traffic violations, constrain drivers' bad driving habits, effectively prevent road traffic accidents, and provide scientific data for law enforcement personnel to analyze and handle accidents.

System Functions

No	Item	Description
1	System on/off	When ACC ON, default system startup (startup time ≤ 5S). Recording function can be turned off or on by pressing the button
2	Image display	Real-time display of rear recorded camera image with delay <100 milliseconds when display screen is turned on
3	Brightness adjustment	Display screen brightness automatically adjusts with ambient light, with manual adjustment capability
4	HDR	Supports HDR function with dynamic range ≥ 120dB (rear view)
5	Touch screen	Touch screen control for angle adjustment, front/back switching, DVR setting, and on/off operation

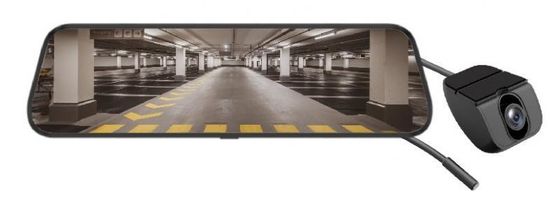

System Combination

No.	Component	QTY	Remarks
1	HD display screen	1	with mounting bracket
2	HD front view camera	1	with mounting bracket
3	HD rear view camera	1	with mounting bracket
4	Wiring Harness	1

TFT Screen Specification

No	Item	CandidTech
1	Resolution	1920*480
2	Size	9.66″
3	Video Interface	MIPI
4	Brightness	800cd/m²
5	Brightness Adjustment	Automatically adjusts brightness while supporting manual adjustment
6	Display Area	222.32mm(H) x 58.08mm(V)
7	Frame Size	236.15(H) x 64.48(V)

Specification of Front View Camera

No	Item	CandidTech
1	Resolution	1920*1080 (2M pixels)
2	Lens Viewing Angle	H:120°, V:60°
3	Dynamic Range	80dB
4	Aperture	F/NO:1.8
5	Frame Rate	30fps
6	Interface	MIPI CSI

Specification of Rear View Camera

The rear recording camera adopts OV image sensor, outputs 1080P/60fps, supports starlight night vision with HDR and 120dB dynamic range.

No	Item	CandidTech
1	Resolution	1920*1080 (2M pixels)
2	FOV	H:80°, V:43°
3	Dynamic Range	120dB
4	Aperture	F1.8
5	Frame Rate	60 fps
6	Transmission signal	AHD
7	Waterproof class	IP67/IP69

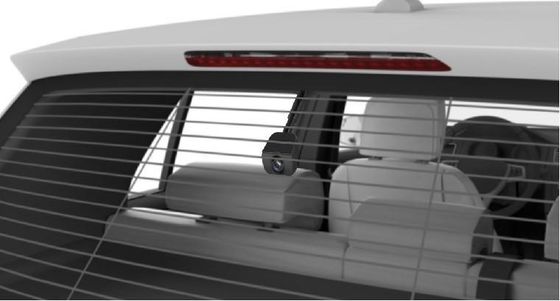

Installation
