1080P 2MP BroadR Reach Camera 100 BASE-T1 PHY /802.1Q AVB/RTP PROTOCOL OEM Quality Grade

Brand Name:	Customized
MOQ:	300
Price:	Negotiatable
Payment Terms:	T/T,L/C
Supply Ability:	100000/Month

Detail Information

Product Description

Detail Information

Certification:

E-Mark, CE, FCC, RoHS

Connectivity:

BroadR-Reach®

Rates:

100 Baset-T1

Protection:

IP67 Waterproof

Video Format Support:

H.264 & JPEG

Applicability:

Vehicles Based On Ethernet 802.1Q AVB Or RTP Protocol

Application:

Automotive, Agriculture Machine, Heavy Duty, Robot Etc.

Working Temp.Range:

-40℃~+85℃

Packaging Details:

Regular Export Packaging, Customized

Supply Ability:

100000/Month

Highlight:

960P broadr reach camera

720P broadr reach camera

IP69K broadr reach

Product Description

Overview

CandidTech's latest Ethernet camera module is developed with a 2M - image sensor and the Broadcom image processor (BCM89103). It supports the in - vehicle Ethernet T1 protocol, fully meeting automotive - grade performance standards. Thanks to professional image tuning, it delivers high quality image effects. Equipped with a industrial grade lens, the whole camera module can reach an IP67 waterproof rating, ensuring excellent resistance to dust and water. Ideal for automotive applications, this camera module offers reliable performance and high - quality imaging in various harsh environments.

Main Features

Automotive - grade protection level
gPTP time synchronization
Support for lenses with different focal lengths
FCC, CE and RoHS certifications

Different vehicle appilications,including high-end cars, trams, commercial vehicles, BUS, TAXI, agricultural vehicles and so on.

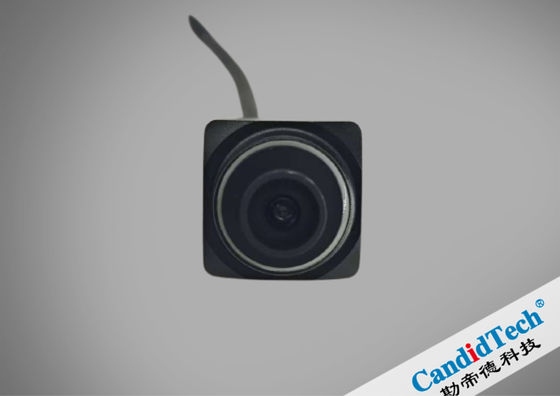

1080P 2MP BroadR Reach Camera 100 BASE-T1 PHY /802.1Q AVB/RTP PROTOCOL OEM Quality Grade 0

KEY Specifications

Sensor	2M RGGB
Active Pixel	1920H*1080V
Pixel Size	3.0um*3.0um
Frame Rate	30fps
HDR	Support
LFM	Support
IP Address	DHCP
PROTOCOL	100 BASE-T1 PHY /802.1Q AVB/RTP
Output Format	H.264
Power Supply	9V-16V
Current	<150mA@12VDC
Connector	4PIN(M20033-1X4-W)
Working Temperature	-40℃~+85℃
Weight	<50g
Output Interface	BroadR-Reach®
Waterproof Rating	IP67
Assembly Tech	AA
Other inner parameter customization	Support

REMARKS:

The product appearence including size, strutrue, installation position, color etc. support customized based on your vehicle interior.
If you could send us an inquiry form with detailed specification requirements, we would greatly appreciate it so that we can make an accurate evaluation.

Our current product lines covervehicle camerasfor different applications: including rear view, front view, side view and around view, Dash Cameras, Around View Monitoring Systems, ADAS products,CMS(Camera Monitor System) ,OMS(Occupant monitor system),DMS(Driver Monitor System), and the like. Please email:sales2@candidelectronics.com for more details.
