4 Channel 360 Degree Surround View Camera System with AI Pedestrian Detection, 1080P Resolution, and Vehicle-Grade Durability

4 Channel 360 Degree Surround View Camera System with AI Pedestrian Detection, 1080P Resolution, and Vehicle-Grade Durability

Brand Name:	CandidTech
MOQ:	300
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000PCS/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

IATF16949/ISO9001/ISO14000

Operating Temperature:

-30℃ ~ +85℃

Storage Temperature:

-40℃ ~ +105℃

Operating Voltage:

9.5V ~ 36V

Recording Resolution:

1080P @ 15FPS

Compression Format:

H.264 Baseline@L3.1

Bit Rate:

5Mbps, 3GB/hour

Supply Ability:

100000PCS/Month

Product Description

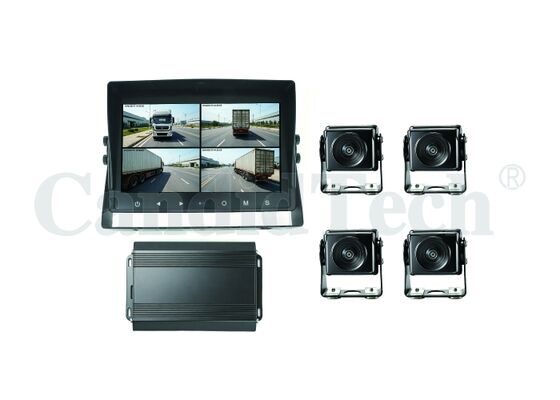

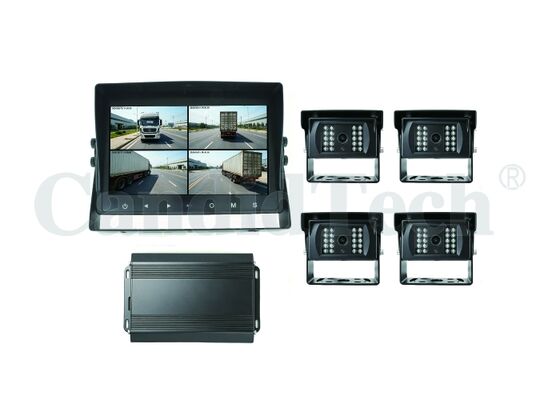

4 Channel 360 Degree Surround View Camera System

Eliminate blind spots and enhance vehicle safety with our AI HD 3D 4-channel 360° Around View Monitor (AVM) system. This on-board DVR system provides users with all-weather driving recording, driving/parking assistance and other functions. It is an on-board high-tech intelligent hardware product that synthesizes images from four fisheye lenses outside the vehicle into a seamless panoramic image through software algorithm, superimposes a virtual 3D vehicle model, and transmits it to the vehicle display screen in real time through video signal.

Designed for heavy-duty trucks, buses, construction vehicles, and armored vehicles, this panoramic camera system delivers seamless 360° bird's-eye view coverage with 1080P (up to 4K optional) clarity, powered by advanced T507 intelligent hardware. Built for fleet safety, it combines real-time monitoring, AI-powered collision warnings, and reliable recording to reduce accidents and simplify daily operations.

Key Features

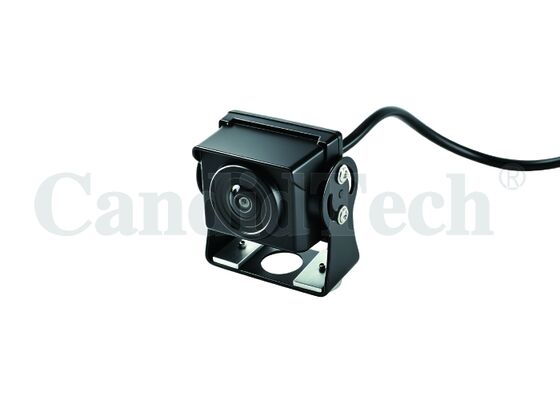

4 * 180° Ultra-Wide Fisheye Cameras: Capture full 360° surround view with hardware-accelerated fisheye correction, eliminating blind spots around the vehicle.
AI Pedestrian & Vehicle Detection: Identifies cyclists, e-bike riders, pedestrians, and vehicles with early warning alerts for proactive safety.
3D Dynamic View Switching: Seamless 3D panoramic stitching with automatic view switching based on turn signals or reverse gear.
Flexible Recording & Storage: Supports TF cards (up to 32GB) and USB drives (up to 68GB) with H.264, 5Mbps bitrate, and loop recording.
Vehicle-Grade Durability: IP-rated waterproof cameras, -30°C to +85°C operating temperature range, and smart power management to protect vehicle batteries.
Transparent Underside (All-Terrain Perspective): Drivers can clearly see road conditions under the vehicle. In off-road situations, drivers can easily avoid large potholes and stones to prevent bottoming out, scraping, and other vehicle damage.

Core Selling Points

AI-Powered Safety: The 360 bird view camera system's pedestrian and vehicle detection reduces collision risks, ideal for fleet management and urban logistics.
Easy Calibration & Installation: Simple calibration steps with calibration tape, supporting nearly all vehicle types from 5.5m to 13m in length.
Reliable 24/7 Monitoring: Integrated DVR functionality records footage for accident evidence, with G-sensor support for event-triggered saving.

Real-World Application Scenarios

Logistics & Long-Haul Trucks: Navigate narrow urban roads, tight loading bays, and crowded delivery zones with 360° visibility to prevent scrapes and collisions.
Public Transit Buses: Safely maneuver through busy intersections and crowded stops, while recording footage for passenger safety and incident documentation.
Construction & Heavy Equipment: Operate excavators, cranes, and work trucks on busy job sites, eliminating blind spots near workers and obstacles.
Armored & Special Vehicles: Maintain full situational awareness in high-security environments, with tamper-proof recording and reliable 24/7 monitoring.
Fleet Management & Parking: Use automatic view switching and trajectory guidance for side parking, reverse stall parking, and blind-spot monitoring during turns.

Frequently Asked Questions

What vehicles is this 360° AVM system compatible with?

It works with buses, trucks, construction vehicles, armored vehicles, and luxury cars, supporting lengths from 5.5m to 13m.

Does the 4-way 360° blind spot elimination system support night vision or low-light performance?

While the base model focuses on high-definition recording, the camera system's automatic brightness balance ensures clear visibility in varying light conditions.

What optional functions are available?

Options include parking video monitoring, intelligent four-wheel trajectory, stereo visual radar, turn blind area detection, driver behavior analysis and road offset tips.

Is professional installation required for calibration?

No. The AI collision warning 360° AVM system comes with matching calibration tape and supports automatic scanning calibration. The operation steps are simple and easy to finish.

Can the Real-time 360° bird's eye view monitoring system record videos automatically when collision happens?

Absolutely. Built-in G-sensor will trigger emergency recording once collision occurs, locking the footage as valid accident evidence.
