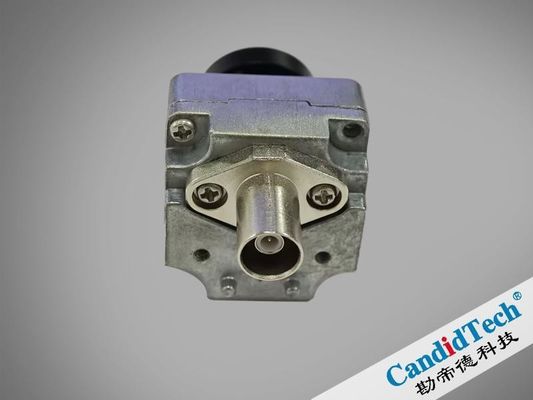

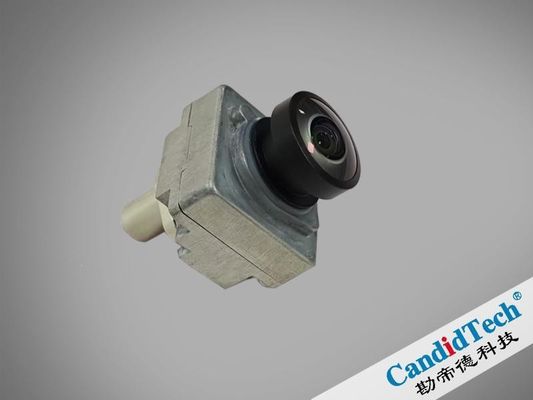

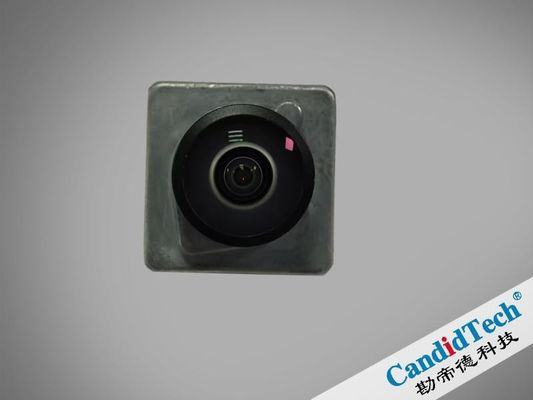

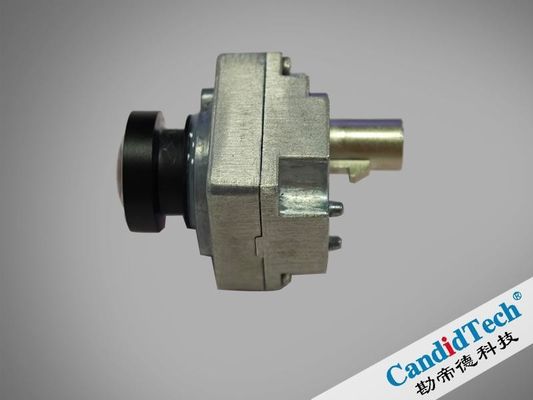

SC320AT 3Mpix GMSL2 LVDS Camera with 120dB HDR 210° Ultra-Wide-Angle and IP69K Waterproof for Automotive Applications

Brand Name:	Customized
MOQ:	500
Price:	Negotiatable
Payment Terms:	T/T,L/C
Supply Ability:	100000PCS/Month

Detail Information

Product Description

Detail Information

Certification:

E-Mark, CE, FCC, RoHS

Interface:

GMSL2 3Gbps

Focus Technology:

AA (Active Alignment)

HDR:

120dB

FOV:

210° Ultra-wide-angle

Appearance:

Compact Design

Operating Temperature:

-40°C To +85°C

Waterproof Rating:

IP69K

Customization:

Supported

Application:

Automotive

Packaging Details:

Regular Export Packaging, Customized

Supply Ability:

100000PCS/Month

Highlight:

SC320AT LVDS Camera

3Gbps LVDS Camera

3Mpix lvds kamera

Product Description

SC320AT 3Mpix GMSL2 3Gbps LVDS Camera Automotive OE Grade 120dB HDR

Overview

CandidTech's 3-Megapixel LVDS High-Definition Digital Camera features the SC320AT image sensor from SMARTSENS, offering exceptional performance for various applications
30 frames per second frame rate with three-frame fusion algorithm optimizes dynamic range, achieving 120dB HDR for excellent image clarity in challenging lighting
Integrated GMSL2 3Gbps high-speed serial interface protocol with MAXIM serializer ensures fast and reliable data transmission
210° horizontal ultra-wide-angle lens provides extensive field of view coverage
IP69K waterproof rating guarantees performance in wet and harsh environmental conditions
Compact embedded design suitable for diverse visual applications
Meets OE vehicle specifications with operational temperature range of -40°C to +85°C for consistent performance in extreme weather
Full customization support including lens selection, mounting brackets, and parameter adjustments

Experience superior image quality, robust performance, and versatility with the 3.0 MP LVDS High-Definition Digital Camera - the ideal solution for applications demanding high-resolution imaging and reliable performance in challenging environments.

Technical Specifications

Parameter	Specification
Image sensor/ISP	SC320AT
Lens	4G2P+1IR
Aperture	2.0
FOV	H:210°±3° V:170±3°
Resolution	1920*1536
Frame Rate	30fp/s
Serializer	MAXIM
Transmission type	GMSL2 3Gbps
Video format	YUV422
Sync type	Internal sync/External sync
LFM	Support
HDR	120dB
Start-up time	<1S
Working voltage	DC 7-16V
Working current	<200mA(DC 8V)
Static current	None
Connector	FAKRA
Power supply mode	POC
LED fill light wavelength	None
Storage temperature	-40℃～+85℃
Working temperature	-40℃～+85℃
Waterproof rating	IP69
Size	252534.5mm
Other parameter customization	Support

About CandidTech

Factory pricing with strong market competitiveness
Leading R&D technology capability
20 years service experience for domestic and foreign mainstream OEM customers
Own Automatic AA camera production line and front-end equipment
OE automotive grade quality, strictly controlled by IATF16949 system with excellent product consistency and stability
Support OEM & ODM services
30 days supply delivery
3 years after-sales guarantee

Our current product lines cover vehicle cameras for various applications including rear view, front view, side view and around view, Dash Cameras, Around View Monitoring Systems, ADAS products, CMS (Camera Monitor System), OMS camera, DMS camera, and similar solutions. Please email: sales2@candidelectronics.com for more details.
