products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Universal Dash Cam
Created with Pixso.

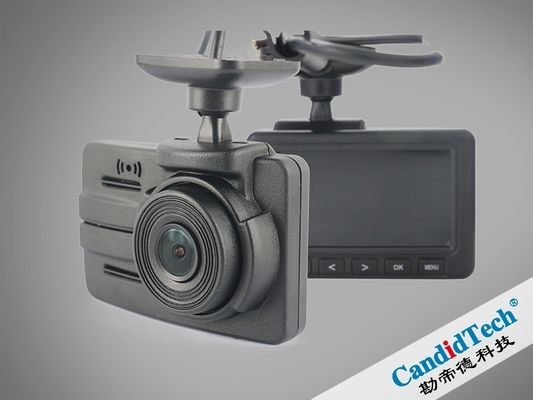

Dash Camera With Monitor Dual Recording Front And Rear View

Dash Camera With Monitor Dual Recording Front And Rear View

Dash Camera With Monitor Dual Recording Front And Rear View

Brand Name: Customized
MOQ: 300
Price: Negotiatable
Payment Terms: T/T, L/C
Supply Ability: 100000/Month
Detail Information
Product Description
Detail Information
Certification:
E-Mark, CE, FCC, RoHS
Features:
Memory Functions, Real-time Video Checking, Parking Guard, Smart Phone Wi-Fi Connect
Image Quality:
High Definition
Lens Type:
Ultra Wide Angle
Recording Mode:
Dual (Front And Rear)
Application:
Automotive
Packaging Details:
Regular Export Packaging, Customized
Supply Ability:
100000/Month
Highlight:

Front View universal dash cam

,

Rear View universal dash cam

,

Real time dash camera

Product Description

SPECIFICATIONS:





Horizontal FOV

 120±3°
Vertical FOV           62±3°
Horizontal clarity    ≥ 630 TV Line
Vertical clarity        ≥ 600 TV Line
F/No           1.8

Waterproof Level

 IP5K5K
Lens       6G+IR Filter
Resolutions           1928(H) x 1088(V) (16:9 mode)
Sensitivity          4.0 V/lux-sec
Night Vision               Low light level night vision
Frame Rate          30 fps (1080P)
SNR           48dB min
Dynamic Range          120dB min
Minimum Illumination         50IRE@0.1 Lux
Maximum Illumination           100,000 Lux

Capacity

 8~32GB (can be recorded for 6h)
Video Files          MP4
Data Protection           File encryption function
Data Processing           When memory card is full, the new videos will cover the old ones.

Image Compressed Format

 H.264
Compression Ratio          200:1

Collision Lock Recording

 Automatic lock protection when collision
Privacy Protection           Sound turn-off optional
Circular Recording Mode           Recording time 1/3/5 minutes setting optional
Auto Power On           Yes

Video Format

 NTSC
Output Interface           CVBS signal connect with Wi-Fi then output to mobile phone APP
Frame Correction           Build-in

Power Supply

 Battery + ACC

Operation Voltage

 9~16VDC

Opeartion Current

 270mA

Quiescent Current

 < 1mA
Power Consumption          3W

Operation Temperature

 -20℃～70℃

Storage Temperature

 -40℃～95℃

DVR Weight

 450g(for reference only)





SPECIAL FUNCTIONS:

1) Ultra Wide Angle Image Calibration

wide angle fisheye image calibration

2) Wi-Fi Connect: Real-time Video Display

User can watch real-time video on smart phone, the camera and view angle are adjustable when installation.



  • Real-time video output to smart phone;

  • Smart phone can be consider as a monitor;

  • User can adjust the camera view angel through smart phone APP.

dash cam smart phone app

3) Wi-Fi Connect: Video Playback

User can watch video playback on smart phone.

  • Continuous video recording(1080P);

  • Connect with smart phone APP through Wi-Fi;

  • Previous video playback;

  • User can copy the videos to the smart phone;

  • User can upload the videos to the Internet by smart phone.

DVR loop recording wifi share



INSTALLATION:

dash camera monitor installation

rear view car camera



Our current product lines cover vehicle cameras for different applications: including rear view, front view, side view and around view, Dash Cameras, Around View Monitoring Systems, ADAS products,CMS(Camera Monitor System) ,OMS(Occupant monitor system),DMS(Driver Monitor System), and the like. Please email:sales2@candidelectronics.com for more details.
