Automotive Infrared ADAS System with 96% AI Recognition Accuracy 350-Meter Detection Distance and All-Weather Detection

Automotive Infrared ADAS System with 96% AI Recognition Accuracy 350-Meter Detection Distance and All-Weather Detection

Brand Name:	Customized
MOQ:	300
Price:	Negotiatable
Payment Terms:	,L/C,T/T
Supply Ability:	100000PCS/Month

Detail Information

Product Description

Detail Information

Field Of View:

Infrared: 42°×32° Visible Light: 120°×60°

Storage:

Built-in 32GB, Supports Up To 512GB TF Card

Operating Temperature:

-20℃～＋80 ℃

Power Consumption:

≤12W (@12V）

Power Interface:

DC 12V

Supply Ability:

100000PCS/Month

Highlight:

Complex Environment Automotive Infrared ADAS

High AI Recognition Automotive Infrared ADAS

Product Description

Automotive Infrared ADAS with High AI Recognition Rate in Complex Environments

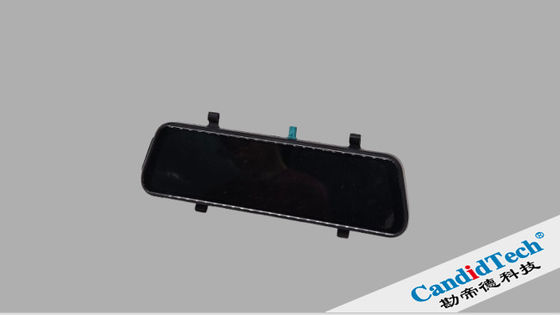

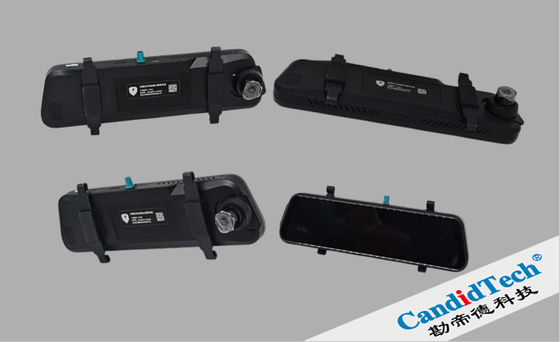

Candid's automotive infrared ADAS anti-collision system features a 100,000-pixel infrared imaging camera with 384×288 resolution and high response rate, combined with a 9.66-inch high-definition streaming dual-light integrated display for seamless switching between visible light and infrared images.

The system incorporates a high-performance quad-core CPU and independent NPU, delivering AI recognition accuracy up to 96% and maximum detection distance of 350 meters.

This advanced system monitors and identifies pedestrians, vehicles, wildlife, and other targets across all weather conditions and scenarios including night, fog, rain, and snow. It provides voice prompts and intelligent light strip linkage warnings, simplifies operation, and is compatible with multiple vehicle models to significantly enhance driving safety and convenience.

Streaming Host Specifications

Output Resolution	Infrared: 384×288 Visible light: 1920×1080
Field of View	Infrared: 42°×32° Visible light: 120°×60°
Power Consumption	≤12W (@12V)
Power Interface	DC 12V
Video Interface	Built-in
Protection Rating	IP5KX
Audio Interface	Built-in speaker
Screen Size	9.66 inches
Operating Temperature	-20℃～＋80℃
NETD	35mK
Storage	Built-in 32GB, supports up to 512GB TF card
Dimensions	≤256×96×25mm
Weight	≤480g

Infrared Camera Specifications

Output Resolution	Infrared: 384×288 Visible light: 1920×1080
Field of View	Infrared: 42°×32° Visible light: 120°×60°
Power Consumption	≤12W (@12V)
Power Interface	DC 12V
Video Interface	Built-in
Protection Rating	IP67
Audio Interface	Built-in speaker
Screen Size	9.66 inches
Operating Temperature	-20℃～＋80℃
NETD	35mK
Storage	Built-in 32GB, supports up to 512GB TF card
Dimensions	≤256×96×25mm
Weight	≤60g

350-Meter Ultra-Far Infrared Detection

Dual-Spectrum Streaming Media Integration

Intelligent Early Warning With Audio And Video Synchronization

Candid's infrared ADAS collision avoidance system leverages industry-leading infrared imaging and AI algorithms, integrating detection, display, and warning functions to deliver exceptional performance in any environment.

The lightweight design and easy installation enable rapid deployment across various vehicle types including sedans, SUVs, trucks, and MPVs, significantly improving driver visibility and control confidence. Whether for city commuting, long-distance travel, or rural roads, Candid technology provides comprehensive protection for worry-free journeys.

For more information about innovative features and functions of Candid's Automotive Infrared ADAS, please visit www.candidelectronics.com.

Our current product lines include vehicle cameras for various applications: rear view, front view, side view and around view, Dash Cameras, Around View Monitoring Systems, ADAS products, CMS (Camera Monitor System), OMS (Occupant Monitor System), DMS (Driver Monitor System), and similar technologies. Please email: litmea.mo@candidelectronics.com for more details.
